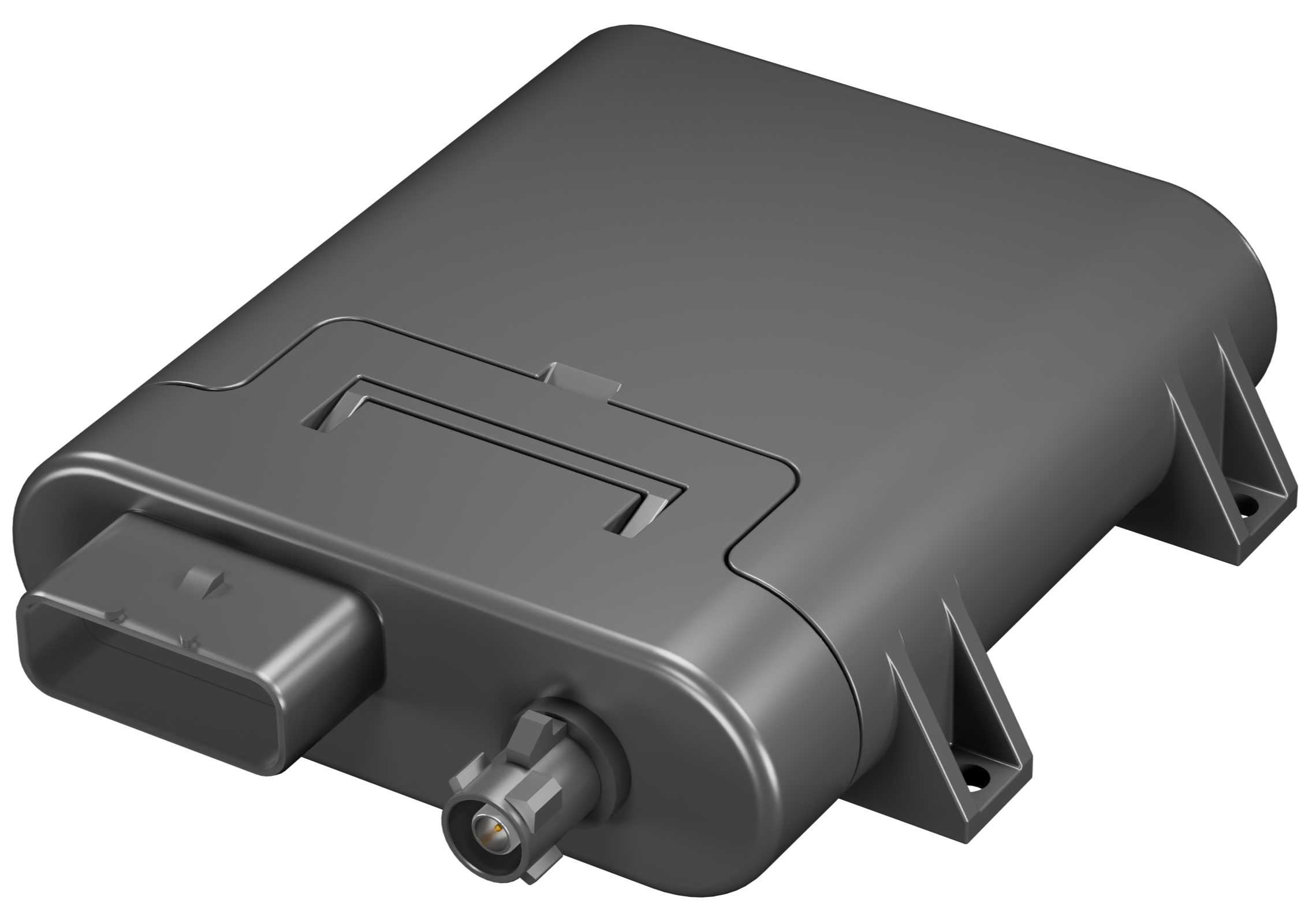

AT300 IP68 Plant & Machinery Tracking Device
- 5 year warranty
- System updates for life
Our AT300 follows-on from our previous AT211, designed specifically for plant & machinery applications, providing security, tow-alerts, immobiliser and remote control / immobilisation via BLE using our iOS / Android application.
AT300
In Detail
Our AT300 device is designed for applications where harsh environmental conditions may be encountered. Ideal for plant & machinery security, motorcycles and boats for example. The AT300 uses a compact automotive connector for easy integration into vehicle wiring harnesses. Antennas are internal, with the option to connect an external GNSS antenn via sealed FAKRA, for use when the device location is not optimal for good GNSS signal reception. Our AT300 comes in a compact & sturdy enclosure for easy mounting using double-sided foam adhesive tape, cable ties or M4 fasteners. Please refer to our Installation Guide at the bottom of this page for more details of our recommended installation tools, consumables and procedures.
LTE Cat 1 (4G) + GSM (2G) fallback
Bluetooth BLE
GPS GALILEO GLONASS & Beidou
Dual SIM (4FF plastic + MFF2 chip)
90V Operation
Internal Antennas + External GNSS option
IP68 Waterproof
3-axis MEMS + 6-axis IMU optional
820mAh Back-up Battery
1-Wire / Dallas
2 Digital Outputs
2 Digital Inputs
CANBus
AT300
Techincal Specifications
| Mobile Network Communications | LTE Cat 1 (4G) + GSM (2G) fallback |
|---|---|
| Minimum Operating Voltage | 6.0V |
| Maximum Operating Voltage | 90.0V |
| Qi Wireless Charging | No |
| GSM Antenna | Internal |
| GNSS Antenna Type | Internal or External |
| GNSS Antenna Size | 15mm internal / 25mm external |
| BLE (Bluetooth) | Option |
| SIM Card Format | Dual SIM (4FF plastic + MFF2 chip) |
| Tamper Sensor | No |
| Accelerometer | Yes |
| Battery Capacity (internal) | 820mAh |
| Battery Life (LP mode, 24hr reporting) | 24 days |
| Ingress Protection | IP68 |
| LED Indicators | Internal |
| Digital Inputs | 2 |
| Digital Outputs | 2 |
| ADC Inputs | 0 |
| RS232 Ports | 1 |
| 1-Wire / Dallas | 1 |
| CANBus | Yes |
| AUX 3.3V Out | Yes |
| Driver ID | Yes |
Hardware and reporting customisation available.
At no extra cost.
