AT600 Semi-Trailer Monitoring EBPMS / TPMS Device
- 5 year warranty
- System updates for life
Our all new AT600 SmartTrailer device is the perfect solution for HGV semi-trailer monitoring, with EBPMS and TPMS supporting all common EBS valves and TPMS sensors

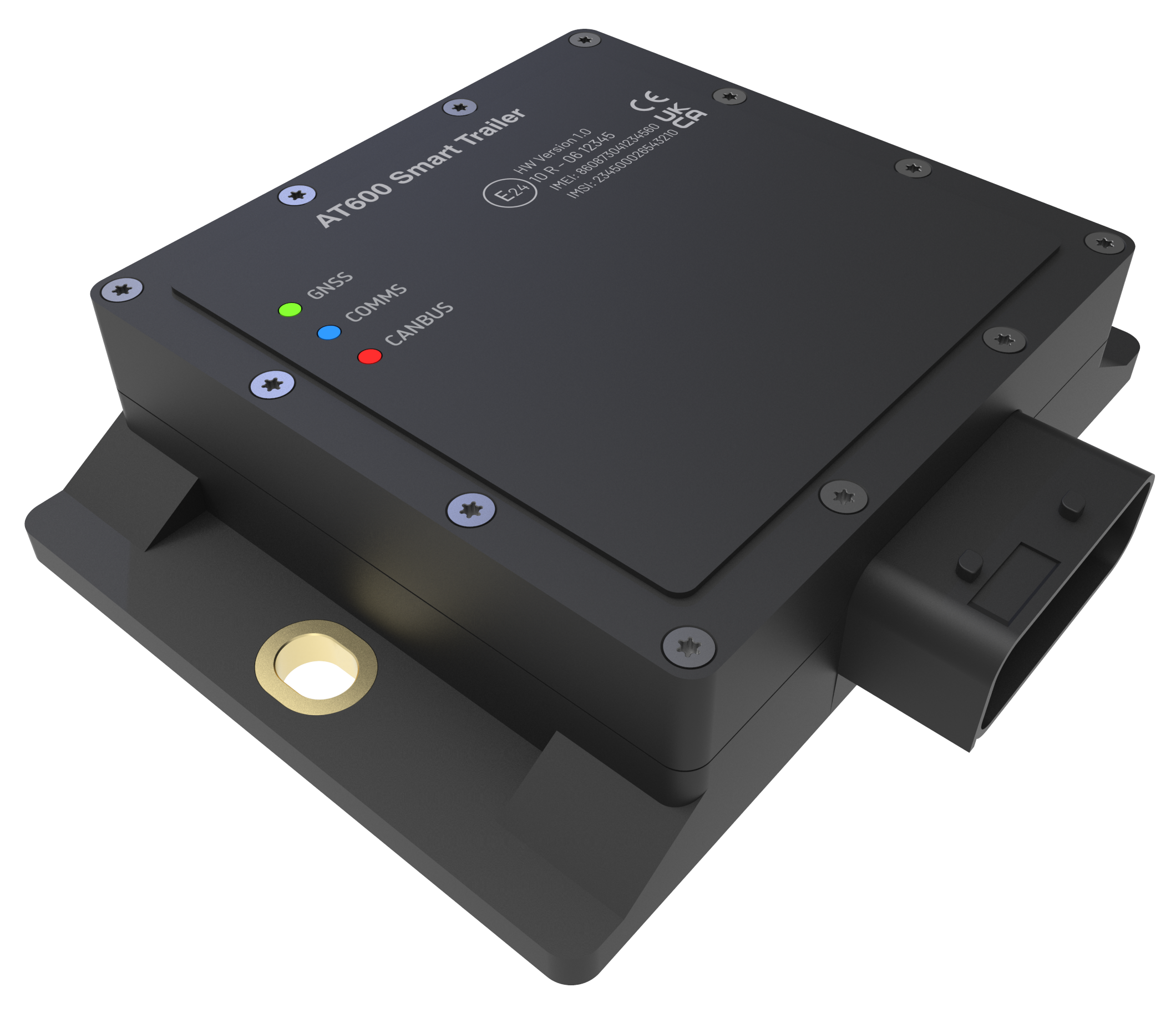

AT600
In Detail
Our AT600 device has been specificaly designed for HGV semi-trailer monitoring applications, with EBPMS and TPMS features being the highlights. The device has a rugged construction, with IP69K ingress protection, HDSCS series connector and M8 mounting, suitable for the harsh environment expected in this application.
LTE Cat 1 (4G) + GSM (2G) fallback
Bluetooth BLE 5.2
GPS GALILEO GLONASS & Beidou
Dual SIM (4FF plastic + MFF2 chip)
90V Operation
Internal Antennas
IP69K Waterproof
6-axis IMU with AI assist
820mAh Back-up Battery
2 Digital Outputs
2 Digital Inputs
433MHz TPMS
CANBus
AT600
Techincal Specifications
| Mobile Network Communications | LTE Cat 1 (4G) + GSM (2G) fallback |
|---|---|
| Minimum Operating Voltage | 6.0V |
| Maximum Operating Voltage | 90.0V |
| Qi Wireless Charging | No |
| LTE / GSM Antenna | Internal |
| GNSS Antenna Type | Internal |
| GNSS Antenna Size | 15mm internal |
| BLE (Bluetooth) | Yes |
| SIM Card Format | Dual SIM (4FF plastic + MFF2 chip) |
| Tamper Sensor | No |
| IMU / Accelerometer / Gyro | Yes |
| Battery Capacity (internal) | 3500mAh with heater |
| Battery Life (LP mode, 24hr reporting) | 120 days |
| Ingress Protection | IP69K |
| LED Indicators | External |
| Digital Inputs | 2 |
| Digital Outputs | 2 |
| ADC Inputs | 0 |
| RS232 Ports | 1 |
| 1-Wire / Dallas | 0 |
| CANBus | Yes |
| AUX 3.3V Out | Yes |
| Driver ID | No |
Hardware and reporting customisation available.
At no extra cost.
